Deere 690DLC, 690ELC, 200LC

1 - Pin, Bucket to Dipper Arm 2 - Pin, Bucket to H-Link 3 - Pin, Link to Dipper 4 - Pin, Link to Cylinder 5 - Bucket H-Link 6 - Bushing, H-Link Closed End 6 - Bushing, H-Link Closed End 7 - Bushing, H-Link Open End 7 - Bushing, H-Link Open End 8 - Seal 8 - Seal 8 - Seal 9 - Seal 9 - Seal 10 - Dipper Link Left Hand (With Bolt Holes) 11 - Dipper Link Right Hand 12 - Bushing, Dipper At Link 12 - Bushing, Dipper At Link 13 - Seal 13 - Seal 14 - Bushing, Dipper To Bucket 14 - Bushing, Dipper To Bucket 15 - Seal 15 - Seal 16 - O - Ring 16 - O - Ring 16 - O - Ring 16 - O - Ring
Click on each number to jump to the product page. Each number on the image is a "Ref #" that can be matched on the table below.

Fits Models At A Glance: John Deere Excavators: 690C, 690D, 790, 790D, 892DLC Key Notes: Weight: 463 lbs. Replaces Part Number(s): AT201931 Ships LTL Truck Freight Origin: Made in USA Manufacturer: Icebox Performance Why Choose Broken...

John Deere Excavator Bucket to Dipper Arm Pin Fits JD 590D, 595D, 160LC, 160CLC, 690DLC, 690ELC, 200LC 80mm x 19 ½”. Center of hole to end 18”

John Deere Excavator Bucket To H-Link Pin Fits JD 690DLC, 690ELC, 200LC, 590D, 595D, 160LC, 160CLC 80mm x 19 ½”. Center of hole to end 18”

John Deere Excavator Link To Dipper Pin Fits JD 690DLC, 690ELC, 200LC, 160LC, 160CLC, 160LC, 590D, 595D 71mm x 17 ¼”. Center of hole to end 15 7/8”

John Deere Excavator Link to Cylinder Pin Fits JD 690DLC, 690ELC, 200LC  80mm x 17 ½”. Center of hole to end 16”

John Deere Excavator H-Link Fits JD 690DLC, 690ELC, 200LC Include Bushings (Installed) Unleash the power of precision with the John Deere Excavator H-Link - the ultimate upgrade for your JD 690DLC, 690ELC, and 200LC models! Complete with pre-installed...

Fits Models At A Glance: John Deere Excavators: 690DLC, 690ELC, 200LC Hitachi Excavators: EX150, EX160 Key Features: Bushing Location: H-Link, Closed End / Dipper Link Dimensions: 80 MM ID, 95 MM OD, 2.7 Inches Wide Origin: Made in USA Weight: 3 lbs...

John Deere Excavator H-Link Open End Bushing Fits JD 690DLC, 690ELC, 200LC 80 ID x 95 OD x 3.6”

Fits John Deere Models: Fits JD: 160CLC, 160DLC, 160GLC, 160LC, 180GLC, 200CLC, 200DLC, 200LC, 225CLC, 225DLC, 230CLC, 230LC, 240DLC, 250GLC, 270LC Fits JD: 590D, 595D, 690DLC, 690ELC, 790DLC, 790ELC, 792DLC Key Features: Replaces John Deere Part...

John Deere Excavator Left Hand Dipper Link With Bolt Holes Fits JD 690DLC, 690ELC, 200LC  23.750" Center to Center

John Deere Excavator Right Hand Dipper Link Fits JD 690DLC, 690ELC, 200LC

John Deere Excavator Bushing, Dipper Stick at Bucket Link Fits JD 160LC, 160CLC, 690DLC, 690ELC, 200LC  71 ID x 86 OD x 2”

John Deere Excavator Seal Must use 71mm seal available from OEM  160LC, 160CLC, 160DLC, 160GLC, 180GLC, 200CLC, 200DLC, 225CLC, 225DLC, 590D, 595D,    590D, 595D, 160LC, 160CLC, 690DLC, 690ELC, 200LC

John Deere Excavator Dipper To Bucket Bushing Fits JD 590D, 595D, 160LC, 160CLC, JD 690DLC, 690ELC, 200LC  Supersedes Part # 4196105  Inside Diameter 80 mm Outside Diameter 95 MM 2" Long

Fits John Deere Trackhoes: 160LC, 160CLC, 200LC, 270LC, 590D, 595D, 690DLC, 690ELC, 792DLC. Key Points: Specifically designed to seal grease and prevent debris from entering between the pin and bushing. Seals pins at the bucket end of the...

Fits Models At A Glance Fits JD Backhoes: 210C, 300D, 310A, 310B, 310C, 315C, 310D, 310E, 310SE, 315SE, 310G, 310SG, 315SG, 310J, 310SJ, 310K, 310SK, 310SL, 410, 410B, 410C, 410D, 410E, 410G, 410J, 410K, 410L, 510B, 510C, 610B, 610C, 710D,...

Fits Models At A Glance JD Backhoes: 210C, 300D, 310A, 310B, 310C, 315C, 310D, 310E, 310SE, 315SE, 310G, 310SG, 315SG, 310J, 310SJ, 310K, 310SK, 310SL, 410, 410B, 410C, 410D, 410E, 410G, 410J, 410K, 410L, 510B, 510C, 610B, 610C, 710D, 710G, 710J, 710K,...

Fits Models At A Glance Fits JD Backhoes: 210C, 300D, 310A, 310B, 310C, 315C, 310D, 310E, 310SE, 315SE, 310G, 310SG, 315SG, 310J, 310SJ, 310K, 310SK, 310SL, 410, 410B, 410C, 410D, 410E, 410G, 410J, 410K, 410L, 510B, 510C, 610B, 610C, 710D, 710G, 710J,...

REF # Image Fits Model Description Part # Price Product Details
H Link for John Deere Dozers and Excavators (AT201931) See Details 690C, 690D, 790, 790D, 892DLC Bucket H-Link AT201931
$4,384.00
View Info
1 John Deere Excavator Bucket to Dipper Arm Pin -- T144756 | Broken Tractor See Details 590D, 595D, 160LC, 160CLC, 690DLC, 690ELC, 200LC Pin, Bucket to Dipper Arm T144756
$322.00
View Info
2 John Deere Excavator Bucket To H-Link Pin 690DLC, 690ELC, 200LC -- T144757 See Details 690DLC, 690ELC, 200LC, 590D, 595D, 160LC, 160CLC Pin, Bucket To H-Link T144757
$322.00
View Info
3 John Deere Excavator Link To Dipper Pin 690DLC, 690ELC, 200LC -- T144755 See Details 690DLC, 690ELC, 200LC, 160LC, 160CLC, 160LC, 590D, 595D Pin, Link To Dipper 0 T144755
$315.00
View Info
4 John Deere Excavator Link to Cylinder Pin 690DLC, 690ELC, 200LC -- T144754 See Details 690DLC, 690ELC, 200LC Pin, Link to Cylinder 0 T144754
$315.00
View Info
5 John Deere Excavator H-Link 690DLC, 690ELC, 200LC -- AT147405 See Details 690DLC, 690ELC, 200LC H-Link 0 AT147405
$2,195.00
View Info
6 John Deere Excavator H-Link Closed End Bushing 690DLC, 690ELC, 200LC -- T139496 See Details 690DLC, 690ELC, 200LC Bushing, H-Link Closed End 0 T139496
$74.00
View Info
7 John Deere Excavator H-Link Open End Bushing -- T139495 | Broken Tractor See Details 690DLC, 690ELC, 200LC Bushing, H-Link Open End 0 T139495
$75.00
View Info
8 / 9 / 15 John Deere Excavator Bucket and Link Seal, Part TH102446 See Details 160CLC, 160DLC, 160GLC, 160LC, 180GLC, 200CLC, 200DLC, 200LC, 225CLC, 225DLC, 230CLC, 230LC, 240DLC, 250GLC, 270LC, 590D, 595D, 690DLC, 690ELC, 790DLC, 790ELC, 792DLC Seal TH102446
$15.00
View Info

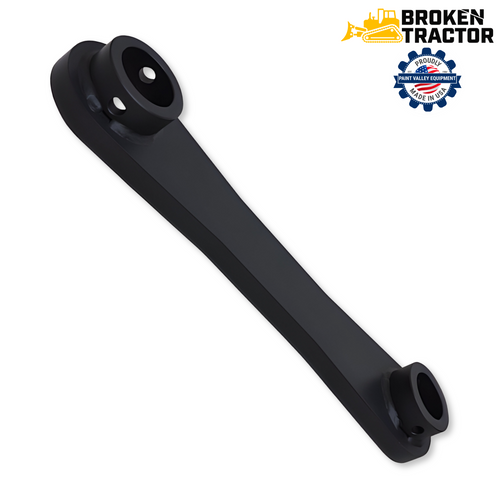

10 John Deere Excavator Left Hand Dipper Link With Bolt Holes 690DLC, 690ELC, 200LC -- AT147404 See Details 690DLC, 690ELC, 200LC Dipper Link Left Hand (With Bolt Holes) 0 AT147404
$485.00
View Info
11 John Deere Excavator Right Hand Dipper Bucket Link 690DLC, 690ELC, 200LC -- T159203 See Details 690DLC, 690ELC, 200LC Dipper Link Right Hand 0 T159203
$450.00
View Info
12 John Deere Excavator Dipper At Link Bushing 160LC, 160CLC, 690DLC, 690ELC, 200LC  -- T104249 See Details 160LC, 160CLC, 690DLC, 690ELC, 200LC Bushing, Dipper At Link T104249
$85.00
View Info
8 / 13 John Deere Excavator Seal -- TH104472 | Broken Tractor See Details 160CLC, 160DLC, 160GLC, 160LC, 180GLC, 200CLC, 200DLC, 200LC, 225CLC, 225DLC, 590D, 595D, 690DLC, 690ELC Seal TH104472
$15.00
View Info
14 John Deere Excavator Dipper To Bucket Bushing -- T139507 | Broken Tractor See Details 590D, 595D, 160LC, 160CLC Bushing, Dipper To Bucket 0 T139507
$65.00
View Info
16 John Deere Excavator O-Ring See Details 160LC, 160CLC, 200LC, 270LC, 590D, 595D, 690DLC, 690ELC, 792DLC O-Ring, Excavator Pin TH102444
$14.00
View Info
Bucket Tooth for John Deere backhoe style with retainer pin See Details 210C, 300D, 310A, 310B, 310C, 315C, 310D, 310E, 310SE, 315SE, 310G, 310SG, 315SG, 310J, 310SJ, 310K, 310SK, 310SL, 410, 410B, 410C, 410D, 410E, 410G, 410J, 410K, 410L, 510B, 510C, 610B, 610C, 710D, 710G, 710J, 710K, 9300G, 9310G Bucket Tooth TF23
$14.00
View Info
Backhoe Bucket Tooth Flexible Retaining Pin See Details 210C, 300D, 310A, 310B, 310C, 315C, 310D, 310E, 310SE, 315SE, 310G, 310SG, 315SG, 310J, 310SJ, 310K, 310SK, 310SL, 410, 410B, 410C, 410D, 410E, 410G, 410J, 410K, 410L, 510B, 510C, 610B, 610C, 710D, 710G, 710J, 710K, 9300G, 9310G Bucket Tooth Retaining Pin TF23P
$5.00
View Info
Deere Backhoe Bucket Tooth Mounting Shank U43792 See Details 210C, 300D, 310A, 310B, 310C, 315C, 310D, 310E, 310SE, 315SE, 310G, 310SG, 315SG, 310J, 310SJ, 310K, 310SK, 310SL, 410, 410B, 410C, 410D, 410E, 410G, 410J, 410K, 410L, 510B, 510C, 610B, 610C, 710D, 710G, 710J, 710K, 9300G, 9310G Bucket Tooth Mounting Shank U43792
$25.00
View Info

John Deere 690DLC, 690ELC, 200LC Excavator Pins, Bushings, and Links
