Extendahoe Dipper Arm Parts - 580L to 580SM

1 - Inner Dipper Stick 2 - Bushing, Inner Dipper at Dipper Cylinder 2 - Bushing, Inner Dipper at Dipper Cylinder 3 - Bushing Dipper at Boom (Without Groove) 4 - Pin, Dipper Cylinder Rod to Dipper 3 - Bushing Dipper at Boom (Without Groove) 5 - Pin, Boom to Dipper 6 - Nut, Boom to Dipper Pin 7 - Wear Plate, Inner Dipper 8 - Inner Dipper Shim (0.030" thick) 9 - Inner Dipper Shim (0.060" thick) 10 - Wear Plate Pin 11 - Wear Plate Pin 12 - Outer Dipper Stick 13 - Pin 14 - Bushing, Dipper at Bucket 14 - Bushing, Dipper at Bucket
Click on each number to jump to the product page. Each number on the image is a "Ref #" that can be matched on the table below.

Fits Models At A Glance: Case Backhoes: 580L, 580M. Key Features: New steel Inner Dipper Stick. Case Extendahoe Models Replaces Part # 122503A1. Weight: 500 lbs. Origin: Made in the USA. Engineered for optimal performance and durability in demanding...

Fits Models At A Glance: Case Backhoes: 580 Super K, 580 Super L, 580 Super M Note: For models equipped with an extendible dipper stick Key Notes: Replaces Part Number(s): 140453A1, 244536A1 Origin: Made in USA Material: US Sourced Steel Manufacturer:...

Fits Models At A Glance: Case Backhoes: 580L, 580M Key Notes: Part Number: D145978 Weight: 1 lb Location: Dipper Stick at Dipper Cylinder Why Choose Broken Tractor? Precision Fit: Specifically designed for the inner dipper or Standard dippper at the...

Fits Models At A Glance: Dipper Stick at Boom Connection: Fits Case 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M. Swing Tower at Boom Cylinder Connection: Fits Case 580K. Key Features: Size: 70.19 mm ID x 94 mm OD x 40 mm...

Case Backhoe Pin - Dipper Stick to Bucket and Dipper Cylinders Connects Dipper Cylinder Rod End to Dipper Stick Connects Bucket Cylinder to Dipper Stick Fits extendible and standard dipper sticks Fits Case 580K, 580 Super K, 580L,  580 Super L,...

Fits Models: Case Backhoes: 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Key Features: Replaces Part Number: D132494 Size: 2 3/4" (70 mm) outside diameter 13" (331 mm) overall length. Weight: 20 lbs. Application: Connects the backhoe...

Fits Models At A Glance: Case Backhoes: 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M Key Notes: Note: Used only on backhoes without a Bucket Quick Coupler Part Number: D141076 Inner Diameter (ID): 57.17...

  Key Notes: Part Number: 495-81282, 87690482, 86625259 Weight: 0.05 lbs 2" ID x 3" OD x 1.09" Thick Important: High-quality OEM washer designed for CASE machinery, providing reliable fit and durability in various applications. Why Choose Broken...

Fits Models At A Glance: Dipper Stick at Dipper Cylinder Rod: 580K, 580 Super K, 580M, 580 Super M Boom at Dipper Cylinder Tube: 580K, 580 Super K Steering Axle, Rear Pivot Bushing (2WD): 580K, 580 Super K, 580L, 580 Super L, 580M, 580...

Fits Models At A Glance: Case Backhoes: 580K, 580 Super K, 580 Super L, 580 Super M Fits models with Extendahoe (Extendable Dipper Stick) Key Notes: Interchanges with Part Number(s): D129900, D141890, D147989, 102649A1, 129445A1, 362951A1,...

Fits Models At A Glance: Fits Case Backhoes: 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Note: 580K: Fit 101631A1 Dippers, Check OD Dimensions and Specifications: Inner Diameter (ID): 2.0 inches (50 mm) Outer Diameter (OD): 2.375 inches (2...

Case Backhoe Outer Dipper Stick (Extendible Dipper) Fits Case 580L, 580M New Steel Replacement Made in USA

Fits Models At A Glance: Case Backhoes: 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Key Notes: Part Number: D141666 Weight: 7 lbs Length: 7 1/8 inches (between snap rings) Overall Length: 199 mm (7.83 inches) Diameter: 50 mm (1.97 inches)...

Fits Models At A Glance: Case Backhoes: 580K, 580 Super K, 580 Super L, 580 Super M Key Notes: Part Number: D138022 Style: Pin with Snap Ring Grooves Length: 8-5/8 inches (between snap ring grooves) Diameter: 50 mm Location: Connects Dipper Cylinder...

Case Backhoe Extendible Dipper Stick Wear Pad Fits Case Backhoes: 580K, 580 Super K, 580L, 580 Super L, 590 Turbo, 590 Super L, 590 Super M Interchanges with Case Part #'s 132716A1 and 363321A1 Four used per machine, Sold Individually

Case Backhoe Inner Dipper Wear Plate  Fits Case 580L, 580 Super L, 580M, 580 Super M 5 7/8" x 5 3/4"  1/2" thick

Case Backhoe Inner Dipper Shim  Fits Case: 580L, 580 Super L, 580M, 580 Super M  0.030 inches thick

Case Backhoe Inner Dipper Shim  Fits Case: 580L, 580 Super L, 580M, 580 Super M  0.060 inches thick Size: 19mm Inside Diameter x 142mm Outside Diameter x 1.6mm Thick

Case Extendahoe Wear Plate Pin  Fits Case: 580L, 580 Super L, 580M, 580 Super M  Two used per machine; Sold Individually

Case Extendahoe Wear Plate Pin  Fits Case: 580L, 580 Super L, 580M, 580 Super M  Two used per machine; Sold Individually

Fits Models At A Glance: Case Backhoes: 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Turbo, 590 Super L, 590 Super M, 590 Super N Key Notes: Outside Diameter: 40 mm (1.57 inches) Length: 136 mm (5.35...

Fits Models At A Glance: Fits Case Backhoes: 580K Phase III (After Serial # JJG0020000) Fits Case Backhoes: 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M Key Points: Fits Models with Standard or...

Fits Models: Case Backhoes: 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Turbo, 590 Super L, 590 Super M Key Features: Designed for 1.5" diameter pins. Replaces Part # D25279...

Fits Models At A Glance: Case 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M Key Features: Specially designed for 1 3/4" diameter pins Replaces Part Numbers: D25280,...

Case Backhoe Snap Ring  Fits 2" Diameter Pins Replaces #: 103-16200, D26919, R19659,468371R1, N7263, S117847 and 800-44050 Fits Case 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580...

Case Washer Fits 1.5" Diameter Pins 10 Gauge 0.140" Thick 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, etc Thick and Sturdy: Case Washer for Heavy-Duty Jobs

Case Backhoe Washer Fits 1.5" Pins 14 Gauge 0.078" Thick Replaces #'s: 495-81292, 195-563, 195-63, D28610 Fits Case 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590...

Fits Models At A Glance: Case Backhoes: 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Turbo, 590 Super L, 590 Super M, 590 Super N Key Notes: Fits 1.75" diameter pins 10 gauge 0...

Case Washer Fits 1.75" Diameter Pins 14 Gauge .078" Thick Fits Case 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, etc

Fits Models At A Glance: Case Backhoes: 580 Super L, 580N, 580N EP, 580SN, 580SL, 590 Super N, 680K, 680L Fits 55 MM Pins Washer Size: Inner Diameter (ID): 2.3" / 59 mm Outer Diameter (OD): 3.5" / 90 mm Thickness: 0.13" / 3.3 mm Key...

REF # Image Fits Model Description Part # Price Product Details
1 Case 580L, 580M Inner Dipper Stick (Extend-a-Hoe) (New - Steel - Made in USA) -- 122503A1 | Broken Tractor See Details 580L, 580M Inner Dipper Stick (New) 122503A1
$4,965.00
View Info
1 Case Backhoe Inner Dipper Stick for 244536A1 | Broken Tractor See Details 580 Super K, 580 Super L, 580 Super M Inner Dipper Stick (New) 244536A1
$5,080.00
View Info
2 Case 580L Dipper Stick Bushing See Details 580L, 580M Bushing, Dipper at Dipper Cylinder D145978
$24.00
View Info
Several Case Backhoe Bushing for Dipper Stick at Boom Connection - Fits 580 Series See Details 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Bushing, Dipper at Boom, (580K - Swing Tower) D150121
$24.00
View Info
4 Case Backhoe Pin, Dipper Cylinder Rod to Dipper Stick 580L, 580M -- 129041A1 See Details 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Pin, Dipper to Dipper / Bucket Cylinder Rod 129041A1
$69.00
View Info
5 Case Backhoe Pin for Boom to Dipper Stick, Part D132494, for 580 Series See Details 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Pin, Boom to Dipper D132494
$74.00
View Info
9 Case Backhoe Dipper Stick Spacer Bushing See Details 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M Spacer, Bucket Links D141076
$84.00
View Info
CASE Washer -- 495-81282 See Details 2" Pin 2" ID Washer 87690482
$4.00
View Info
(10 & 17-Bucket), (6-Front Axle) D138047 Bushing for Case 580K to 590 Super N See Details 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Turbo, 590 Super L, 590 Super M, 590 Super N, 585G, 586G, 588G, 586H, 588H, 570LXT, 570MXT, 570NXT Bushing (60mm OD) D138047
$24.00
View Info
12 Case Backhoe Outer Dipper Stick by Broken Tractor 87600242 | Broken Tractor See Details 580K, 580 Super K, 580 Super L, 580 Super M Outer Dipper Stick (New) 87600242
$4,645.00
View Info
12, 16 Case Backhoe Replacement Bushing for Enhanced Dipper Performance See Details 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Bushing, Dipper Stick D140029
$18.00
View Info
12 Case 580L, 580M Backhoe Outer Dipper Stick (New) -- 87619781 | Broken Tractor See Details 580L, 580M Outer Dipper Stick (New) 87619781
$4,345.00
View Info
13 Case 580K Bucket Cylinder Pin See Details 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M Pin, Dipper Stick to Bucket and Dipper Cylinder D141666
$64.00
View Info
15 Case 580K Dipper Cylinder Rod Pin See Details 580K, 580 Super K, 580 Super L, 580 Super M Pin, Dipper and Bucket Cylinder Rod End D138022
$74.00
View Info

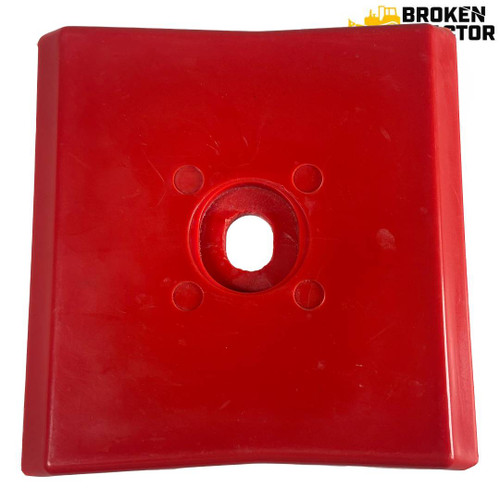

7 Case Backhoe Extendahoe Wear Plate -- 363321A1 | Broken Tractor See Details 580K, 580 Super K, 580L, 580 Super L, 590 Turbo, 590 Super L, 590 Super M Wear Plate (Extendible Dipper) 363321A1
$75.00
View Info
7 Case Backhoe Inner Dipper Wear Plate 580L, 580 Super L, 580M, 580 Super M -- 451384A1 See Details 580L, 580 Super L, 580M, 580 Super M Wear Plate, Inner Dipper 0 451384A1
$50.00
View Info
8 Case Backhoe Inner Dipper Stick Shim -- 132844A1 See Details 580L, 580 Super L, 580M, 580 Super M Inner Dipper Shim (0.030" thick) 132844A1
$8.00
View Info
9 Case Backhoe Inner Dipper Shim -- 132842A1 See Details 580L, 580 Super L, 580M, 580 Super M Inner Dipper Shim (0.060" thick) 132842A1
$9.00
View Info
10 Case Extendahoe Wear Plate Pin -- 183509A1 See Details 580L, 580 Super L, 580M, 580 Super M Wear Plate Pin 183509A1
$5.50
View Info
11 Case Extendahoe Wear Plate Pin -- See Details 580L, 580 Super L, 580M, 580 Super M Wear Plate Pin 183443A1
$4.00
View Info
13 Case 580K Extendahoe Cylinder Pin See Details 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Turbo, 590 Super L, 590 Super M, 590 Super N Pin, Extendahoe Cylinder Tube End 300588A1
$44.00
View Info
Case Backhoe Hydraulic Line Rubber Support Cushion See Details 580K-III, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M Hydraulic Line Support 184297A1
$98.00
View Info
Case Backhoe Snap Ring for 1.5" Diameter Pins See Details 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, etc Snap Ring (1.5" Pins) D25279
$4.50
View Info
Heavy Duty Pin Retainer Snap Ring for Case Backhoes at Broken Tractor See Details 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, etc Snap Ring (1.75" Pin) 103-16175
$4.75
View Info
Case Backhoe Snap Ring for 2" Pins -- 84158898 | Broken Tractor See Details 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, etc Snap Ring (2" Pins) 84158898
$6.00
View Info
Case Backhoe Washer - 1.5", 10 Gauge Thickness -- U11649 | Broken Tractor See Details 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, etc Washer (1.5" Pins) (10-Gauge / 0.140" Thick) U11649
$4.00
View Info
Case Backhoe Washer 1.5" 14 Gauge -- 495-81292 | Broken Tractor See Details 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, etc Washer (1.5" Pins) (14-Gauge / 0.078" Thick) 495-81292
$3.25
View Info
1.75" Pin Washer for Case Backhoes | Broken Tractor See Details 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Turbo, 590 Super L, 590 Super M, 590 Super N Washer, 1.75" Pin Diameter 495-81226
$3.50
View Info
Case Washer 1.75" - 14 Gauge -- 30575 See Details 580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, etc Washer (1.75" Pins) 30575
$3.25
View Info
495-81230 Washer for 55 MM Pin See Details 580N, 580N EP, 580 Super N, 590 Super N, 580SV, 695SV, B90B, B95B, B95D, B110B, B95BTC, B115BTC Washer (55 mm Pins) 495-81230
$8.00
View Info

Case Backhoe Extendahoe Dipper Arm Parts - Case 580L, 580 Super L, 580M, 580 Super M
