Case Front Axle Steering Cylinder and Axle Shaft

1 - Tie Rod End 2 - Tie Rod Jam Nut 3 - Ball Joint 4 - Nut 5 - Steering Cylinder 6 7 - Power Steering Cylinder Seal Kit (4WD) 8 - Long Axle Shaft 9 - U-Joint, Internal Drive Shaft 10 - Connector, Internal Drive Shaft 11 - Short Shaft (Front Axle) 9 - U-Joint, Internal Drive Shaft 9 - U-Joint, Internal Drive Shaft 9 - U-Joint, Internal Drive Shaft 7 - Power Steering Cylinder Seal Kit (4WD) 1 - Tie Rod End 2 - Tie Rod Jam Nut 3 - Ball Joint 4 - Nut
Click on each number to jump to the product page. Each number on the image is a "Ref #" that can be matched on the table below.

Fits Models At A Glance: Fits Case 590 Super L Fits Case 590 Super M - Series I & II Key Notes: Kit Includes Tie Rod End, Swivel Joint, and two nuts. Fits Right Hand and Left Hand sides. Fits Four Wheel Drive Front Axles. Right Hand Thread...

Fits Models At A Glance: Fits Case Backhoes:  Case 590 Super L Case 590 Super M - Series I & II Only (Before Serial # N8C500000) Fits Case Tractors: Case MX100, MX110, MX120, MX135 (04/98 - 12/02) Case MX150, MX170, MX80C,...

Case 590SM III Backhoe Front Axle Tie Rod End Center of Tie Rod to End 10.25" Long  M24 x 1.5 RH Thread

Case Backhoe Right Hand Tie Rod Jam Nut Fits Case 590 Super L, 590 Super M M24 x 1.5 RH Thread Interchanges with 100033, 9968017

Case Backhoe Tie Rod Nut Fits Case 590SL, 590SL II, 590SM, 590SM II, 590SM III  M18 Superseded by part number: 12577021

Case Backhoe Front Axle Outer Short Shaft Fits Case 590 Super L Fits Case 590 Super M - Series I & II (Does not fit Series III) Fits Case 580K, 580 Super K, 590 Turbo  Enhance the performance and reliability of your Case Backhoe...

Fits Models At A Glance: NH Backhoes: 575N, 575N EP, 695SV, B75D, B115, B115B, LB115, LB115.B, LB115CP  Case Backhoes: 590 Super M (Series 3), 590 Super M + (Series 3), 680L, 695 Super M Case Trencher: 460 Case Ag Tractors: MX135, MX150, MX170,...

Case Backhoe Left Hand Tie Rod Jam Nut M24 x 1.5 LH Thread Interchanges with 126145A1 Fits Case 580K ASN JJG0020000 with 4-Bolt Gland Fits Case 580 Super K, 590 Turbo Fits Case 590SL, 590SL SERIES II, 590SM, 590SM SERIES II Key...

Case Backhoe Front Axle Long Shaft Fits Case 590 Super L Series 1 and 2, Some 590 Super M Series 1 with 381382A1 Axle

Fits Models At A Glance Case Backhoes: 580K, 580 Super K, 590 Turbo, 590 Super L, 590 Super M Series I & II, 680L, 780D Special note: Compatible with Left-Hand side of Four-Wheel Drive Models Key Points Thread Sizes: M22 X 1.5 Right-Hand...

Fits Models At A Glance: Case Backhoes: 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M Case Backhoe: 580K After Serial Number JJG0020000 W/ 4 Bolt Steering Cylinder Case Loader Landscapers: 570LXT,...

Case Backhoe Front Axle Long Shaft  Fits Case 590SM Series 1 with 87415748 Housing or 87417392 Axle Assy Fits Case 590SM Series 2

Case Backhoe Front Axle U Joint  Fits Case: 590 Super L, (590 Super M - Series I & II) Interchanges with 84355357, 144465A1 This U joint is an essential component for maintaining smooth and efficient power transfer in your backhoe's front...

Fits Models At A Glance Fits Only Right-Hand Side of Steering Cylinder Case Backhoes: 580K, 580 Super K, 590 Turbo, 680L, 780D Fits Right-Hand and Left-Hand Side of Steering Cylinder Fits Case Backhoes: 590 Super L, (580 Super...

Case Backhoe Front Axle Shaft Connector Fits Case 590 Super L, 590 Super M Fits Four Wheel Drive Front Axle

Case Backhoe Front Axle Short Shaft Fits: Case 590 Super M Series III Four Wheel Drive Machines

Fits Models Fits Four Wheel Drive Models Case 580K After Serial # JJG0020000 with 4-Bolt Mounting Style Case 580 Super K, 590 Turbo, 590 Super L Case 590 Super M Series I & II (Before Serial # N4C999999) Key Points Features left-hand...

Case 4WD Drive Shaft Yoke Connects 4WD Drive Shaft to Rear Axle or Front Axle Two Used Per Machine / Sold Individually Fits Case Backhoes: 580L, 580 Super L, 580M, 580 Super M, 590 Super L, 590 Super M,  Fits Case Loader Landscapers: 570LXT,...

Fits Models At a Glance Case Backhoes: 580L, 580 Super L, 580M, 580 Super M, (590 Super L Series I) Loader Landscapers: 570LXT, 570MXT Forklifts: 585G, 586G, 588G Key Features Part Number: 137223A2 Fit: Specially designed for machines with four-wheel...

Fits Models At A Glance: Case Backhoes: 590 Super L Series II (After Serial # JJG0210575), 590 Super M Loader Landscaper: 570MXT Key Features Part Number: 282038A2 Design: Fits models equipped with a 40 Gallon fuel tank. Weight: 65 lbs. Condition:...

REF # Image Fits Model Description Part # Price Product Details
Case Backhoe Front Axle Steering Arm Assembly by Broken Tractor See Details 590 Super L, 590 Super M* Steering Arm Assy D142916
$134.00
View Info
1 Case Backhoe Four Wheel Drive Front Axle Tie Rod End -- 183677A1 | Broken Tractor See Details 590 Super L, 590 Super M-I & II Tie Rod End (Left or Right) 183677A1
$144.00
View Info
1 Case 590SM III Backhoe Front Axle Tie Rod End -- 247523A1 See Details 590 Super M - Series III Tie Rod End 247523A1
$125.00
View Info
2 Case Backhoe Right Hand Tie Rod Jam Nut 590SL, 590SL II, 590SM, 590SM II, 590SM III -- 126143A1 See Details 590 Super L, 590 Super M Tie Rod Jam Nut (RH Threads) 126143A1
$12.00
View Info
4 Case Backhoe Tie Rod Nut -- 9968026. | Broken Tractor See Details 590SL, 590SL II, 590SM, 590SM II, 590SM III Nut 9968026.
$7.50
View Info
5 Case Backhoe Front Axle Outer Short Shaft 580K, 580SK, 590 Turbo -- N14409 See Details 580K, 580SK, 590 Turbo Outer Axle Shaft N14409
$185.00
View Info
5 Case New Holland Backhoe Drive Shaft U-Joint See Details LB115, LB115.B, LB115CP, 590 Super M, 680L, 695 Super M, 460, MX135, MX150, MX170, MX100, MX110, MX120 U-Joint Spider 85807997
$38.00
View Info
7 Case Backhoe Left Hand Tie Rod Jam Nut 580K, 580 Super K, 590 Turbo -- 81878551 See Details (580K ASN JJG0020000 with 4-Bolt Gland), 580 Super K, 590 Turbo LH Thread Jam Nut 81878551
$20.00
View Info
8 Case Backhoe Front Axle Long Shaft 590 Super L Series 1 and 2, 590 Super M Series 1 -- 195212A1 See Details 590 Super L, (590 Super M - Series I) Long Axle Shaft 195212A1
$0.00
View Info

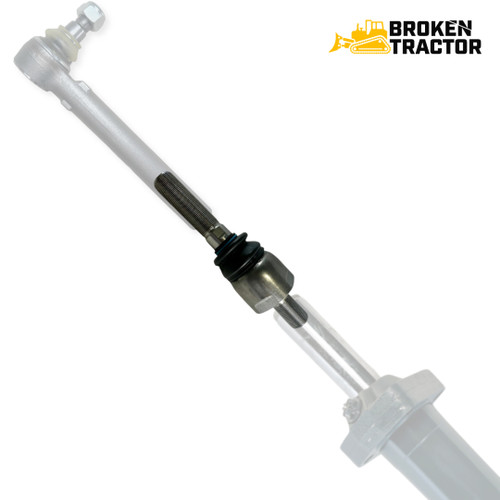

Durable Steering Joint for Case 580SK, 590T, 680L, Left Side See Details 580K, 580 Super K, 590 Turbo Steering Ball Joint- Left Hand N14388
$64.00
View Info
8 Case Backhoe 4 Wheel Drive Power Steering Cylinder Seal Kit , 570LXT, 580L, 580 Super L, 570MXT, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, 590SM II 585G, 586G, 588G -- D149739 See Details 580K*, 580SK, 580L, 580SL, 580M, 580SM, 590 Turbo, 590 Super L, 590 Super M, 570LXT, 570MXT, 585G, 586G, 588G Steering Cylinder Kit, Four-Wheel Drive D149739
$75.00
View Info
8 Case Backhoe Front Axle Long Shaft 590SM Series 1, 590SM Series 2 -- 87416066 See Details 590 Super M (Series I & II) Long Axle Shaft 87416066
$0.00
View Info
9 Case Backhoe Front Axle U Joint 590SL, 590SL SERIES II, 590SM, 590SM SERIES II -- 195215A1 See Details 590 Super L, (590 Super M - Series I & II) U-Joint, Internal Drive Shaft 195215A1
$45.00
View Info
9 Broken-Tractor-48038758-Joint See Details 580K, 580SK, (580SM - Ser II & III), 590 Turbo, 590SL, (590SM - Ser I & II), 680L, 780D Steering Ball Joint N14377
$49.00
View Info
10 Case Backhoe Front Axle Shaft Connector -- 390029A1 | Broken Tractor See Details 590 Super L, (590 Super M - Series I & II) Connector, Internal Drive Shaft 390029A1
$95.00
View Info
11 Case Backhoe Front Axle Short Shaft 590 Super M III -- 87710169 See Details 590 Super M - Series III Short Shaft (Front Axle) 87710169
$0.00
View Info
13 Case 4WD Backhoe New Power Steering Cylinder See Details (580K After Sn # JJG0020000), 580 Super K, 590 Turbo, 590 Super L, (590 Super M Before Sn # N8C0000) Power Steering Cylinder (4WD) D149729
$444.00
View Info
Case Backhoe Axle Drive Shaft Yoke -- 144279A1 | Broken Tractor See Details 580L, 580 Super L, 580M, 580 Super M, 590 Super L, 590 Super M, 570LXT, 570MXT, 570NXT, 585G, 586G, 588G, New Holland LV80, U80, U80B, 80C Axle Drive Shaft Yoke 144279A1
$135.00
View Info
Case 4WD Front Axle Driveshaft Guard OEM Part #137223A2 See Details 570LXT, 570MXT, 580L, 580 Super L, 580M, 580 Super M, 590 Super L, 585G, 586G, 588G Guard Bracket, Drive Shaft 137223A2
$175.00
View Info
Case Backhoe Drive Shaft Guard Bracket See Details (590 Super L Series II), 590 Super M Drive Shaft Guard Bracket 282038A2
$175.00
View Info
